Choosing the right neck finish might seem like a small detail in the broader packaging design process, but it’s one of the most critical decisions in glass packaging. The neck finish determines which closures are compatible, how reliably the package seals, and how the customer experiences the product every time they open or reseal it. Understanding neck finishes is key to ensuring performance, consistency, and a seamless consumer experience.
This guide starts with the basics—what a neck finish is and why it matters—then walks through the most common types in use today. From continuous thread closures to cork, lug, and roll-on pilfer-proof (ROPP) designs, each section highlights where the format is typically used, what advantages it offers, and what to consider when specifying it. We’ll wrap with practical tips on compatibility, standard specifications, and what to look for when matching your closure system to your brand goals.
What Is a Neck Finish and Why It Matters
A bottle’s neck finish refers to the shaped top portion of the neck opening—threads, beads, or lips—designed to interface with the closure. It’s the connection point between bottle and cap, where the integrity of the seal is established. This feature plays a central role in packaging performance: it affects leak prevention, product freshness, tamper evidence, and the ease of opening and resealing.
Beyond function, the neck finish also shapes the consumer’s tactile and visual experience. The twist of a screw cap, the snap of a lug lid, or the pop of a cork all communicate something about product quality, use case, and brand personality.
In short, the neck finish isn’t just an engineering detail—it’s also a branding decision. A well-specified finish ensures closure fit, smooth performance on filling lines, and a user experience that reinforces the product’s positioning.
Understanding Neck Finish Sizes and Standards
Every glass bottle neck finish is defined by a standardized code that ensures compatibility between bottles and closures—even when they come from different suppliers. If you’ve looked at spec sheets, you’ve probably seen designations like 28-410 or 38-400.
The first number refers to the outer diameter of the threads in millimeters. The second part of the code defines the thread style and height. For example, a 28-400 bottle has a 28 mm opening and a single thread that completes roughly one full turn. A 28-410 finish has the same diameter but a taller thread profile, completing about 1.5 turns and fitting a slightly longer cap.
Internationally, several standards are in use:
- GPI (Glass Packaging Institute) / SPI (Society of the Plastics Industry) codes are common in North America (e.g., 24-410, 38-400).
- DIN (Deutsches Institut für Normung) and GL (Gewinde Labor) systems are used across Europe, especially for droppers and lab bottles (e.g., DIN 18, GL 45).
- PP/TE codes are used for pilfer-proof and tamper-evident applications (e.g., PP 28 for spirits and pharmaceuticals).
Understanding these numbers early in the design process helps ensure cross-supplier compatibility, consistent sealing, and efficient procurement.

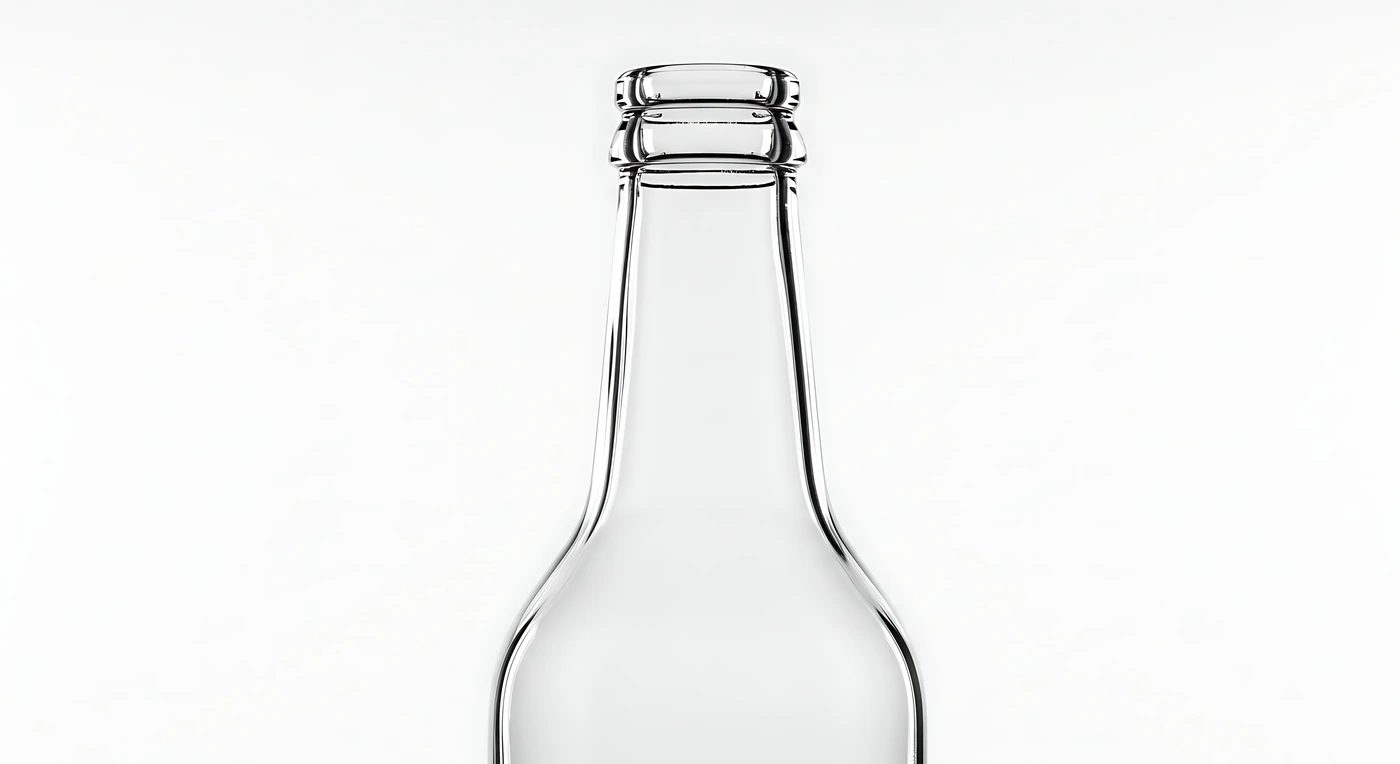

Common Types of Glass Bottle Neck Finishes
Glass bottles are produced with a variety of neck finishes, each tailored to specific closure systems and product applications. The examples below outline some of the most widely used formats, along with their typical use cases, functional strengths, and considerations to keep in mind during selection.
Continuous Thread (CT) Finish
Continuous thread finishes are among the most widely used across packaging categories. They feature a single, uninterrupted spiral thread around the neck, allowing the cap to twist on and off smoothly. CT finishes are typically denoted by codes like 18-400, 24-410, or 38-400, with the first 2 numbers indicating thread diameter, and the last 3 digits indicating the thread profile.
- 18-400: A 18 mm diameter finish with a single thread turn. Common for small-format bottles like essential oils or tinctures.
- 24-410: A 24 mm diameter finish with a taller thread profile (1.5 turns). Widely used for personal care, food, and refillable products.
- 38-400: A wide 38 mm diameter finish with a single thread turn. Ideal for bulk products, dispensing applications, or anything requiring a larger opening.
- Other common CT finishes include: 20-410, 28-400, 33-400, and 45-400—each sized to match specific fill volumes, closure types, and use cases.
These finishes are ideal for food, personal care, pharmaceutical, and household products—any application where reclosability and ease of use are essential. They’re compatible with a broad range of closures, from plain screw caps to droppers, sprayers, and pumps, making them highly versatile across product lines.
CT finishes are also cost-effective and efficient to run, with compatibility across both manual and automated capping lines. The main limitation is security—if tamper evidence or child resistance is required, they should be paired with induction liners, shrink bands, or child-resistant closures.
Overall, continuous thread finishes offer reliable sealing and user-friendly convenience, with flexibility that supports both high-volume manufacturing and a wide range of closure types.
Lug (Twist-Off) Finish
Lug finishes use short, segmented threads—called lugs—instead of a continuous spiral. These lugs interlock with matching projections inside the closure, creating a secure seal with only a quarter turn. Commonly found on glass food jars and certain beverage bottles, lug finishes are easily identified by the familiar “pop” sound that occurs when the vacuum seal is first broken. They’re typically described by size codes such as 38 mm regular lug, 70 mm deep lug, or 53 mm narrow lug, where the number indicates the closure’s outer diameter and the style defines its depth or profile.
- 38 mm regular lug: A 38mm diameter standard low-profile finish used for smaller jars or bottles, typically for sauces, spreads, and condiments.
- 70 mm deep lug: A 70mm diameter deeper thread engagement offering stronger vacuum retention—commonly used for hot-fill glass jars containing jams, pickles, or fruit preserves.
- 53 mm narrow lug: A 53mm diameter narrower finish often seen on medium-sized jars or specialty products requiring a compact lid profile.
- Other common lug finishes include: 51 mm, 53 mm, 58 mm, 63 mm, 77 mm, 82 mm, 89 mm, and 100 mm—each selected to fit the desired jar volume and product application.
Lug finishes are particularly suited to hot-fill and vacuum-sealed applications, such as jams, sauces, and other shelf-stable foods. The audible “pop” not only signals freshness but also acts as a visual and sensory assurance of product integrity.
From a manufacturing standpoint, lug finishes demand precise torque control to ensure consistent sealing performance. They are best applied on automated capping lines, where uniform pressure and alignment can be maintained.
Overall, lug finishes combine reliable sealing, vacuum retention, and a nostalgic consumer experience. They provide both functional security and a traditional look—making them a preferred choice for brands emphasizing freshness, authenticity, and quality.
Roll-On Pilfer-Proof (ROPP) Finish
Roll-On Pilfer-Proof (ROPP) finishes are designed for tamper-evident aluminum closures, most commonly used on glass or aluminum bottles. Instead of molded threads, the bottle neck has a smooth cylindrical surface with a defined locking ring and band. During capping, the aluminum closure is mechanically rolled onto the neck—forming the threads and securing the closure in place. This process creates a tight, leak-resistant seal and a visible tamper band that separates when the cap is first opened.
ROPP finish dimensions are typically expressed as diameter × height (mm). The first number refers to the outer diameter of the closure or bottle finish, corresponding to the neck opening size. The second number indicates the closure height, which defines the overall skirt length of the cap rather than the thread height. In general, smaller closures such as 18×12 mm are short and low-profile, commonly used on miniature or pharmaceutical bottles, while larger closures like 30×35 mm are taller, providing additional space for embossing, printing, or decorative branding. Some standard sizes—such as 28 mm ROPP—omit the height value because the closure height is already standardized for that application, typically around 15 mm for wine and spirit bottles.
- 18×12 mm ROPP: A compact 18 mm-diameter finish with a 12 mm-tall cap, often used for miniature bottles, pharmaceuticals, and spirits samples where small volume and precise dosing are needed
- 28mm ROPP: A 28 mm-diameter finish (about 15 mm high) used for still wines, spirits, and non-carbonated beverages; the industry standard for aluminum screw-top wine bottles.
- 30×35 mm ROPP: A larger 30 mm finish with a 35 mm cap height, offering a premium look and deeper skirt—ideal for edible oils, liqueurs, or high-end beverages.
- Other common finishes include: 25×18 mm, 31.5×24 mm, 33×38 mm, and 35×47 mm, each selected according to bottle size, sealing torque, and aesthetic design.
ROPP finishes dominate in wine, spirits, and pharmaceutical syrups—segments where shelf life, safety, and consumer trust are paramount. The screw-off motion after first opening feels modern and practical, while the break band confirms the product hasn’t been tampered with.
The main consideration is equipment: ROPP cappers are specialized, so this finish is best for operations that can justify the investment. For brands seeking sleek design, strong tamper evidence, and dependable sealing, ROPP is an excellent solution.
Crown Finish
The crown finish—commonly seen on beer and soda bottles—uses a metal cap that’s crimped over a flared glass bead to create an airtight, tamper-evident seal. It’s a trusted format for carbonated beverages, where internal pressure must be maintained throughout distribution and shelf life.
Crown finishes take on a standard 26mm diameter, and there are two major types:
- 26 mm Pry-Off Crown: A traditional crown finish designed to be removed with a bottle opener. It provides an exceptionally tight seal, ideal for high-carbonation beverages and long shelf-life products. Pry-off finishes are common in premium beer and export markets where single-use integrity is prioritized.
- 26 mm Twist-Off Crown: A modified crown design that allows consumers to open the bottle by hand, without a tool. The glass finish includes shallow helical threads, and the cap skirt is formed to engage them, enabling multiple reseals for short-term use. Twist-off finishes are popular for mass-market beers, soft drinks, and convenience packaging.
Crown finishes are durable, cost-effective, and highly efficient for high-speed bottling lines. They also carry heritage appeal, reinforcing associations with classic glass-bottled drinks and traditional brewing or soda-making.
Because they aren’t reclosable, crown caps are best suited for single-serve products. Twist-off crown variants exist and offer some resealability, but they’re not intended for long-term closure once opened.

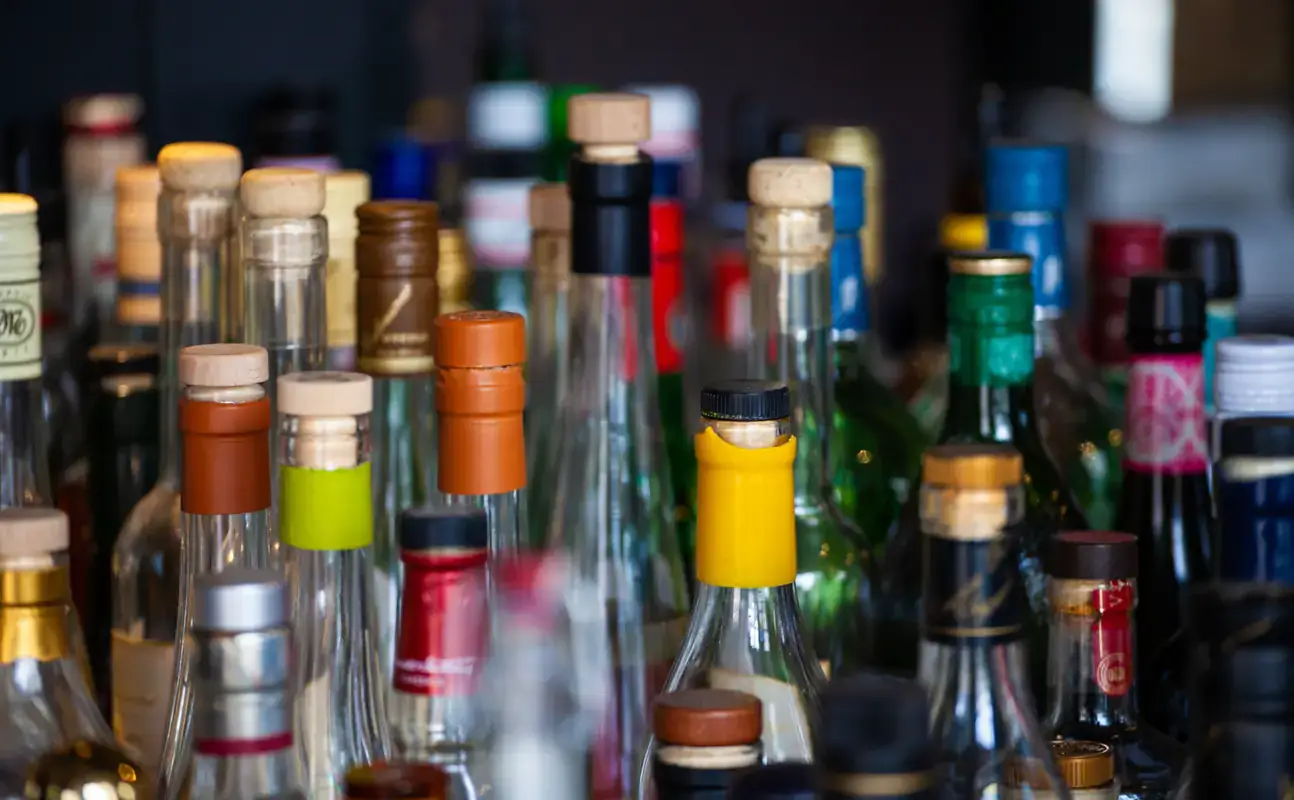

Cork and Bar-Top Finish
Cork finishes feature a smooth, often tapered neck designed to accommodate a natural cork or synthetic stopper, rather than a threaded closure. They’re a mainstay in the wine and spirits industries, where they signal craftsmanship, heritage, and premium positioning.
There are two primary types of closures used with this finish—standard cork and bar-top cork—both typically sized by the internal neck diameter, most commonly 18.5 mm to 21.5 mm, depending on the product category and desired extraction force:
- Standard Cork Finish: Used predominantly for still and sparkling wines, this finish accommodates a natural, agglomerated, or synthetic cork that is fully inserted into the neck. The tight compression of the cork maintains a long-term seal while allowing limited oxygen exchange for wine aging. For sparkling wines or champagnes, the cork expands to form a mushroom shape and is secured with a wire cage (muselet).
- Bar-Top Finish: Designed mainly for spirits, liquors, and fortified wines, this finish combines a cork base (natural or synthetic) with a decorative top—usually made of wood, plastic, or metal. The bar-top allows for easy manual removal and resealing, offering both functional convenience and premium shelf appeal. Typical diameters range from 18.5 mm for small-format bottles to 22 mm or more for full-size spirit bottles.
For high-end beverages, cork closures create a tactile experience that reinforces brand storytelling and perceived value. Bar-top variants—which pair a cork base with a decorative cap or handle—are commonly used for whiskeys, liqueurs, and other top-shelf products.
While elegant, cork-style finishes require careful attention to sealing conditions and may not offer the same convenience or consistency as screw-thread systems. Even so, for luxury formats, the sensory and emotional appeal of a cork often outweighs operational trade-offs.

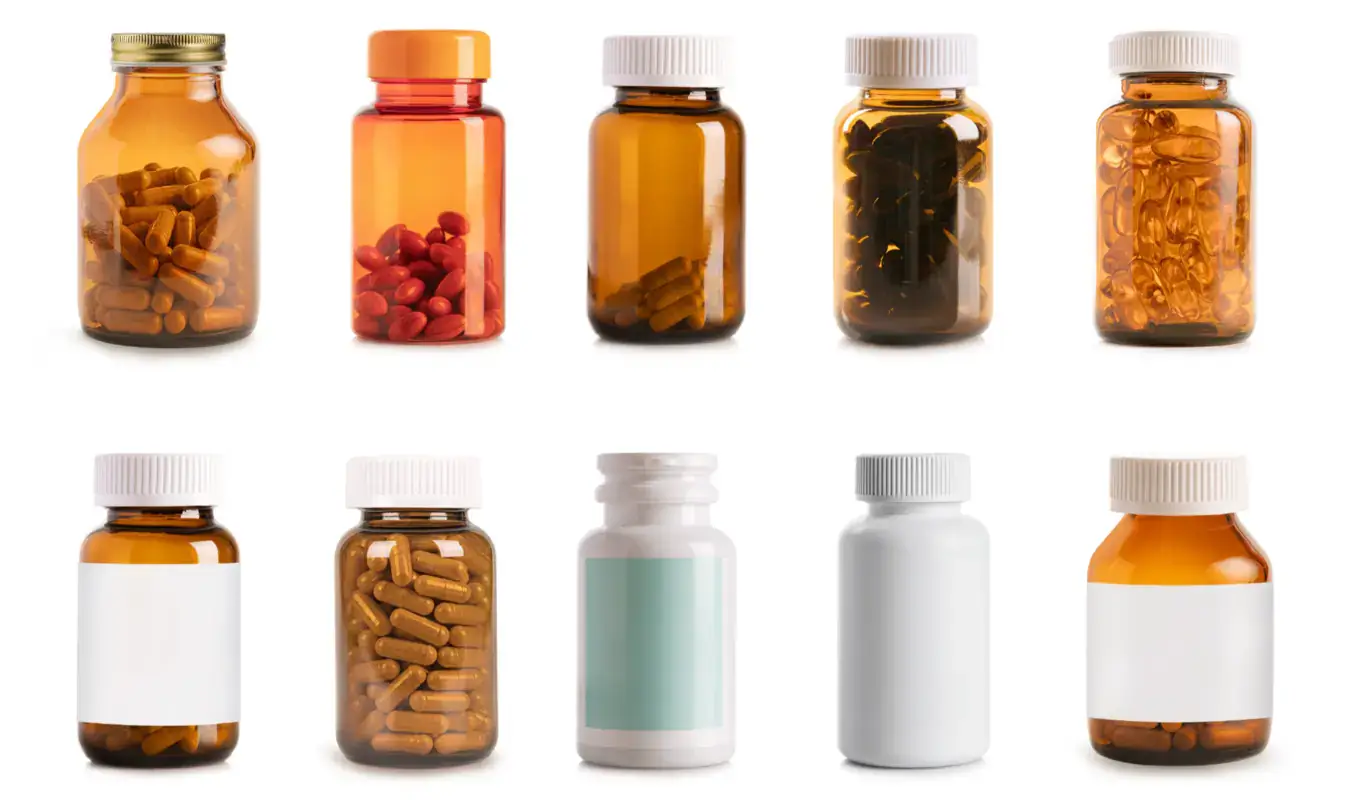

Child-Resistant (CRC) Finishes
Child-resistant packaging relies on specific closure mechanisms rather than unique glass shaping, but it still begins with a compatible neck finish—usually a 400- or 410-series continuous thread. These closures require coordinated torque and thread engagement to function properly.
CRC finishes are based on continuous-thread (CT) neck designs, but with added structural features that engage with the inner and outer cap components of a CRC closure. Like CT finishes, they are identified using standard sizing codes such as 20-400 CRC, 24-410 CRC, or 38-400 CRC. In these codes:
- 20-400 CRC: A 20 mm diameter finish with a single thread turn. Commonly used for pharmaceutical vials, essential oils, and concentrated liquids, providing compact child resistance in small packaging.
- 24-410 CRC: A 24 mm diameter finish with a taller, 1.5-turn thread profile. Widely applied for personal care, cleaning agents, and chemical containers requiring safety and controlled dispensing.
- 38-400 CRC: A wide 38 mm diameter finish with a single-turn thread, ideal for vitamin jars, dietary supplements, or larger liquid bottles that benefit from easy adult access and strong closure engagement.
- Other common CRC finishes include: 28-400, 33-400, and 45-400, each matched to specific container volumes, liner types, and torque specifications.
CRC finishes must comply with recognized safety standards such as U.S. 16 CFR 1700 and ISO 8317, ensuring both child resistance and senior accessibility. Closures often include foam, EPE, or induction liners to provide an airtight seal and enhance product protection.
CRC finishes are essential for pharmaceuticals, nutraceuticals, and regulated consumer products such as cannabis tinctures or cleaning chemicals. They protect safety and compliance while maintaining usability for adult consumers.
When designing around CRC caps, test multiple samples with your actual product, as variations in liner compression and cap torque can affect both child resistance and ease of use.
Technical Insights: The Key Measurements
Behind every neck finish is precise engineering dimensions that guarantee proper fit and sealing. Five core measurements by GPI finish drawings define these:
- T (Thread Diameter): The outermost thread dimension; must match the closure’s inner thread diameter.
- E (Neck Outside Diameter): The smooth area below the threads; used to calculate thread depth.
- I (Inside Diameter): The opening size, important for filling equipment and pour control.
- S (Thread Start): The distance from the top sealing surface to the start of the first thread; affects cap seating height.
- H (Finish Height): The total vertical length of the neck finish; determines cap skirt coverage.
These dimensions work together to enable proper cap application, consistent sealing pressure, and a secure fit. In practice, even slight mismatches—such as a cap expecting a taller S dimension—can lead to over-compression, loose fits, or sealing inconsistency. Reviewing specs from both bottle and closure suppliers early in development often helps reduce packaging challenges downstream.
Bringing It All Together
Often overlooked, the neck finish plays a quiet but central role in packaging success. It influences not just physical fit, but how the product performs on shelf, how it’s experienced by the consumer, and how smoothly it runs through production. From simple screw threads to decorative corks and precision-engineered ROPP closures, each finish type supports a specific functional need—and helps tell a different story about the product it holds.
Understanding the fundamentals—like finish codes, dimensional standards, and closure compatibility—can make technical collaboration easier, streamline approvals, and reduce the risk of fit or sealing issues later on. For packaging teams and brand owners alike, clarity around neck finishes tends to pay off in both performance and perception—starting from the very top of the bottle.
At Evergreen, we offer a wide range of glass bottles, matching closures, and finish specifications—from standard continuous thread designs to specialty formats like ROPP and bar tops. We help teams align packaging decisions with fill process, product behavior, and user experience—so the right fit goes beyond just dimensions and thread count.
Want to explore finish options or spec guidance? Visit our glass packaging page here.
